Welcome To Trinity Packaging
Collar Type Machine
| Technical Specifications | |
|---|---|
| Product application | Powder |
| Sealing Type | Center Seal, three side, four side |
| Roll Width | 500, 800, 1100(depending on the customer/and the product) |
| Pouch Size | depending on the size of the pouch |

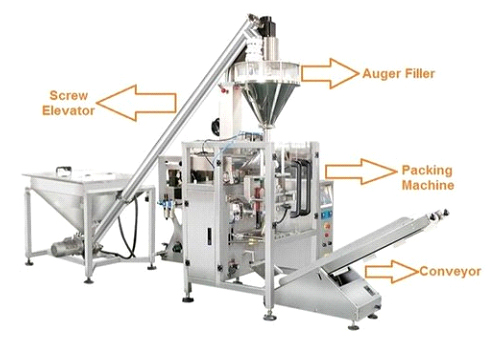

| Feeding System | Augur Filler |
| Main Motor | 1 HP AC Drive |
| Electrical Supply | 220Y V AC/Single Phase/50 Hz or 440V AC / Three Phase / 50 Hz |
| Packing Film | Any heat Sealable Laminate |
| Temperature Controller | PID |
| Machine Speed | 25-60, 40-80 Pouch / Min, (Depends upon nature of poducts) |
| Contact Parts | Food Grade Stainless Steel SS 3l 6 / SS 304. |
| Compressed Air | 6 CFM @ 6 Bar (Depending 0n attachments) |
| Power Consumption | 3KW |
| Optional Attachments | Hot foil Coding/inkjet coding, Nitrogen Flushing, screw elevator take away conveyor( At an extra cost) |
| Technical Specifications | |
|---|---|
| Product application | Any free flow products or non-sticky products |
| Sealing Type | Center Seal, three side, four side |
| Roll Width | 500, 800, 1100(depending on the customer/and the product) |
| Pouch Size | Depending on the size of the pouch |

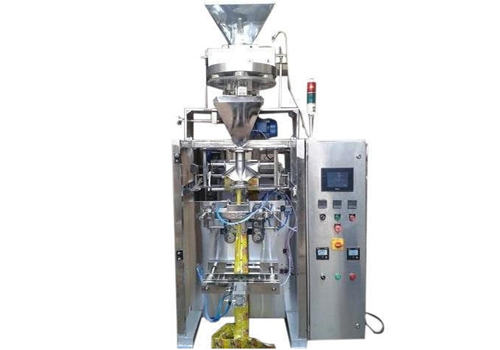

| Feeding System | Cup Filler |
| Main Motor | 1 HP AC Drive |
| Electrical Supply | 220Y V AC/Single Phase/50 Hz or 440V AC / Three Phase / 50 Hz |
| Packing Film | Any heat Sealable Laminate |
| Temperature Controller | PID |
| Machine Speed | 25-60, 40-80 Pouch / Min, (Depends upon nature of poducts) |
| Contact Parts | Food Grade Stainless Steel SS 3l 6 / SS 304. |
| Compressed Air | 6 CFM @ 6 Bar (Depending 0n attachments) |
| Power Consumption | 3KW |
| Optional Attachments | Hot foil Coding/inkjet coding, Nitrogen Flushing, screw elevator take away conveyor( At an extra cost) |
| Technical Specifications | |
|---|---|
| Product application | Any free flow products or non-sticky products |
| Sealing Type | Center Seal, three side, four side |
| Roll Width | 500, 800, 1100(depending on the customer/and the product) |
| Pouch Size | Depending on the size of the pouch |

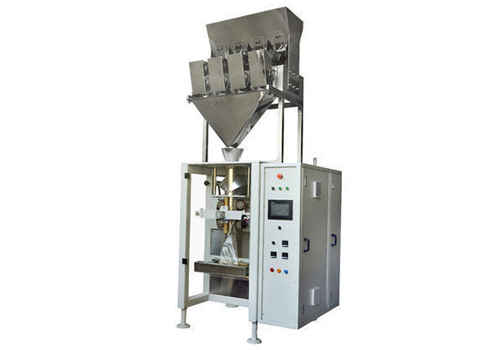

| Feeding System | Single head, two head, three head, four head |
| Main Motor | 1 HP AC Drive |
| Electrical Supply | 220Y V AC/Single Phase/50 Hz or 440V AC / Three Phase / 50 Hz |
| Packing Film | Any heat Sealable Laminate |
| Temperature Controller | PID |
| Machine Speed | For Single head 4-6Pouch / Min, for two head 10-12Pouch / Min, for three head 16-18Pouch / Min, for four head 22-24Pouch / Min (Depends upon nature of poducts) |
| Contact Parts | Food Grade Stainless Steel SS 3l 6 / SS 304. |
| Compressed Air | 6 CFM @ 6 Bar (Depending 0n attachments) |
| Power Consumption | 3KW |
| Optional Attachments | Hot foil Coding/inkjet coding, Nitrogen Flushing, screw elevator take away conveyor, inclined bucket elevator ( At an extra cost) |
| Technical Specifications | |
|---|---|
| Product application | Any free flow products or non-sticky products |
| Sealing Type | Center Seal, three side, four side |
| Roll Width | 500, 800, 1100(depending on the customer/and the product) |
| Pouch Size | Depending on the size of the pouch |

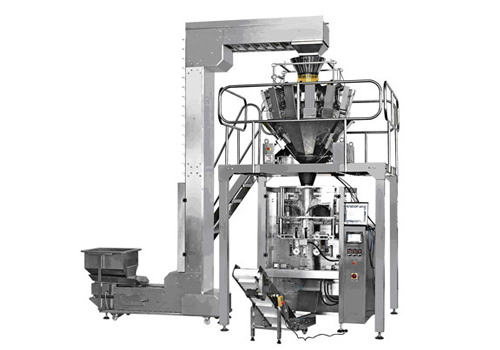

| Feeding System | ten head, fourteen head, twenty one head |
| Main Motor | 1 HP AC Drive |
| Electrical Supply | 220Y V AC/Single Phase/50 Hz or 440V AC / Three Phase / 50 Hz |
| Packing Film | Any heat Sealable Laminate |
| Temperature Controller | PID |
| Machine Speed | For Ten head 40-60Pouch / Min, for Fourteen head 75-80Pouch / Min, for Twenty one head 115-120Pouch / Min, (Depends upon nature of poducts) |
| Contact Parts | Food Grade Stainless Steel SS 3l 6 / SS 304. |
| Compressed Air | 6 CFM @ 6 Bar (Depending 0n attachments) |
| Power Consumption | 3KW |
| Optional Attachments | Hot foil Coding/inkjet coding, Nitrogen Flushing, take away elevator, Z type bucket elevator ( At an extra cost) |
